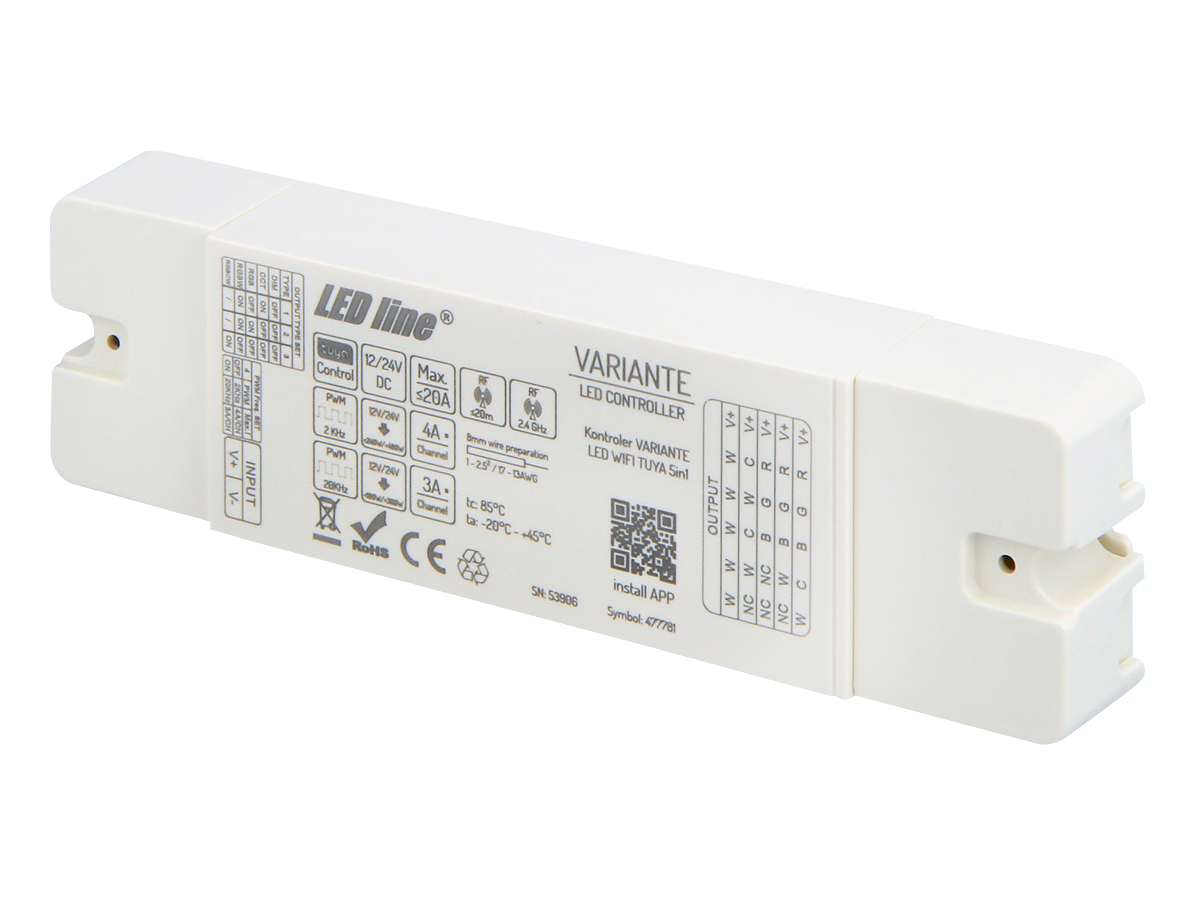

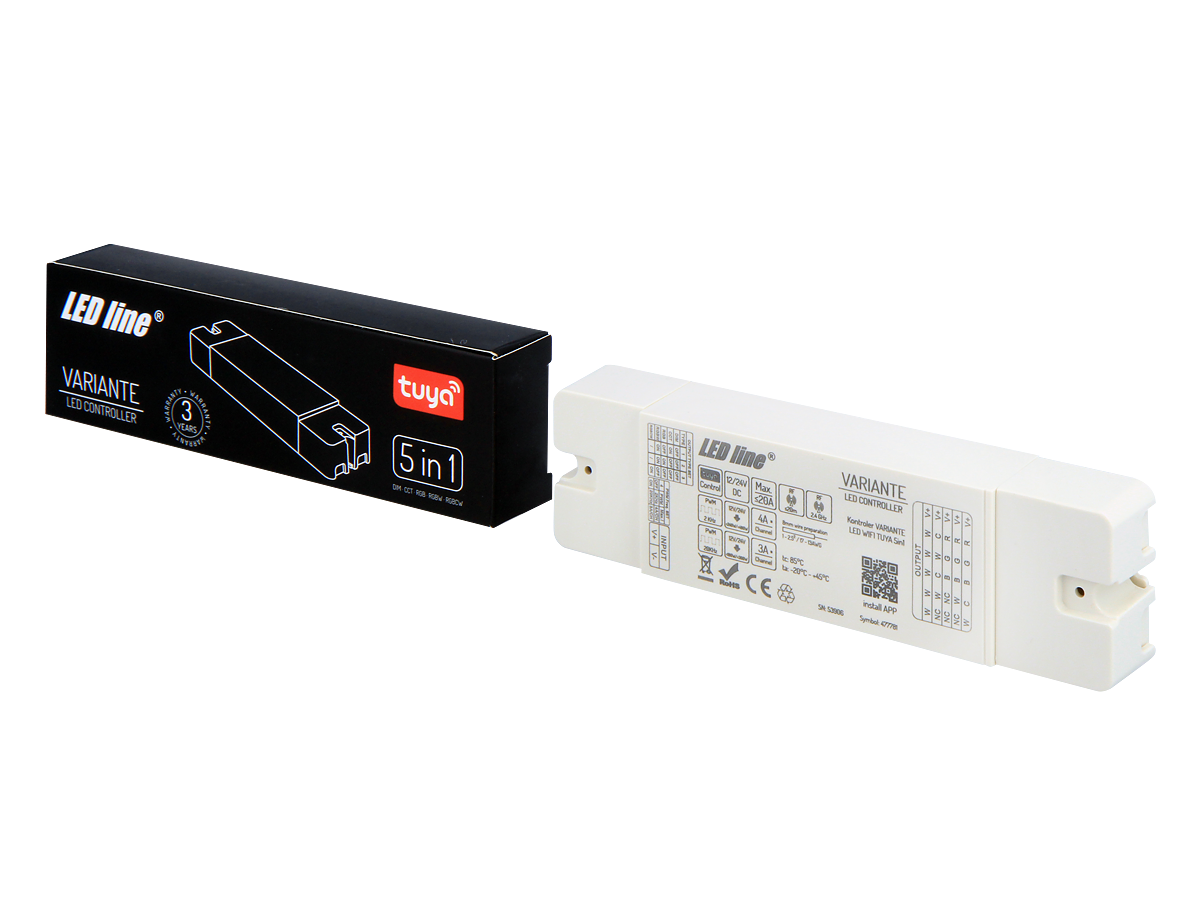

LED line® Controler VARIANTE RF WIFI TUYA 5in1
Product code 477781
Using the controller, you may control devices by means of dedicated remote controls from the VARIANTE series, within the range of 20 m or through WIFI and a free IoT TUYA app, from any place in the world. Both TUYA and SmartLife app allow to control home automation devices in a very easy manner.
The VARIANTE RF WIFI TUYA 5 in 1 controller allows to control all types of LED strips available in our offer: DIM, CCT, RGB, RGBW and RGBCCT.
The TUYA system is integrated into the Smart Things, Smart Life and Smart Home systems.
It is also possible to control TUYA devices using compatible voice apps such as: Amazon Alexa, Google Assistant, Yandex Alice.
The product comes with a [[parameterValue_77_Gwarancja (lata)]]-year manufacturer's warranty.
The VARIANTE RF WIFI TUYA 5 in 1 controller is a device used for controlling all types of strips available in our offer. The controller enables static selection of colours and dynamic changes in light effects. Using it, you may smoothly control brightness, colour of light and colour temperature of white light.
To the controller, you may connect 12 V LED Strips with total output of 240 W, or 24 V LED Strips with total output of 480 W.
Thanks to the VARIANTE Led Controller 5 in 1, using a remote control or through WI-FI you will change the colours in LED strips, LED modules and point sources of light.
Using the controller, you may control devices by means of dedicated remote controls from the VARIANTE series, within the range of [[parameterValue_114_Zasięg RF]] or through WIFI and a free IoT TUYA app, from any place in the world. Both TUYA and SmartLife app allow to control home automation devices in a very easy manner.
The TUYA system is integrated into the Smart Things, Smart Life and Smart Home systems.
It is also possible to control TUYA devices using compatible voice apps such as: Amazon Alexa, Google Assistant, Yandex Alice.
The 5 in 1 controller is a smart product which remembers the settings and when turned on again, activates the last mode used by the user. The controller is friendly and safe – it eliminates the light flickering effect and has a short-circuit protection.
The maximum load of the controller is: 4A x 5 channels Permissible temperature of controller’s operation - from [[parameterValue_64_Temperatura pracy]]. Possibility to select controlling of RGBCCT, RGBW, RGB, CCT and DIM LED strips. The device can operate within the range of [[parameterValue_28_Napięcie zasilania, rodzaj napięcia zasilania]] DC.
The product comes with a [[parameterValue_77_Gwarancja (lata)]]-year manufacturer's warranty.
Technical parameters
| Parametr | Wartość |
|---|---|
| Warranty (years) | 5 |
| PWM frequency | 2KHz, 21.6KHzKHz |
| RF frequency | 2.4GHz |
| RF distance | ≤20m |
| Output current | PWM=2KHz: 4A/CH, PWM=21.6KHz: 3A/CHA |
| Remote included | No |
| Output channels | 5 |
| Weight | 100g |
| Ambient temperature suitable for operation | -20÷60°C |
| Length | 165mm |
| Width | 46mm |
| Height | 25mm |
| Product weight with packaging | 120g |
| GPC classification | 10006896 - Electric lighting - other |
| GS1 unit | szt |
| Width | 165 mm |
| Height | 25 mmmm |
| Length | 46 mmmm |
| Weight | 0,11 kg |
| Number of pieces/tape in meters pack zb | 50 szt. |
| Width | 310 mmmm |
| Height of collective packaging | 210 mm |
| Length | 270 mmmm |
| Weight | 5,85 kgkg |
| Volume | 0,017 m3m3 |
| Number of pieces/tapes in meters euro pallet | 3600 |
| Quantity collective euro pallet | 3600 szt. |
| Weight of a euro pallet | 446,2kg |
| Pallet height | 1890 mm |
| Quantity in 1 layer | 400 szt. |
| Number of layers | 9 |
