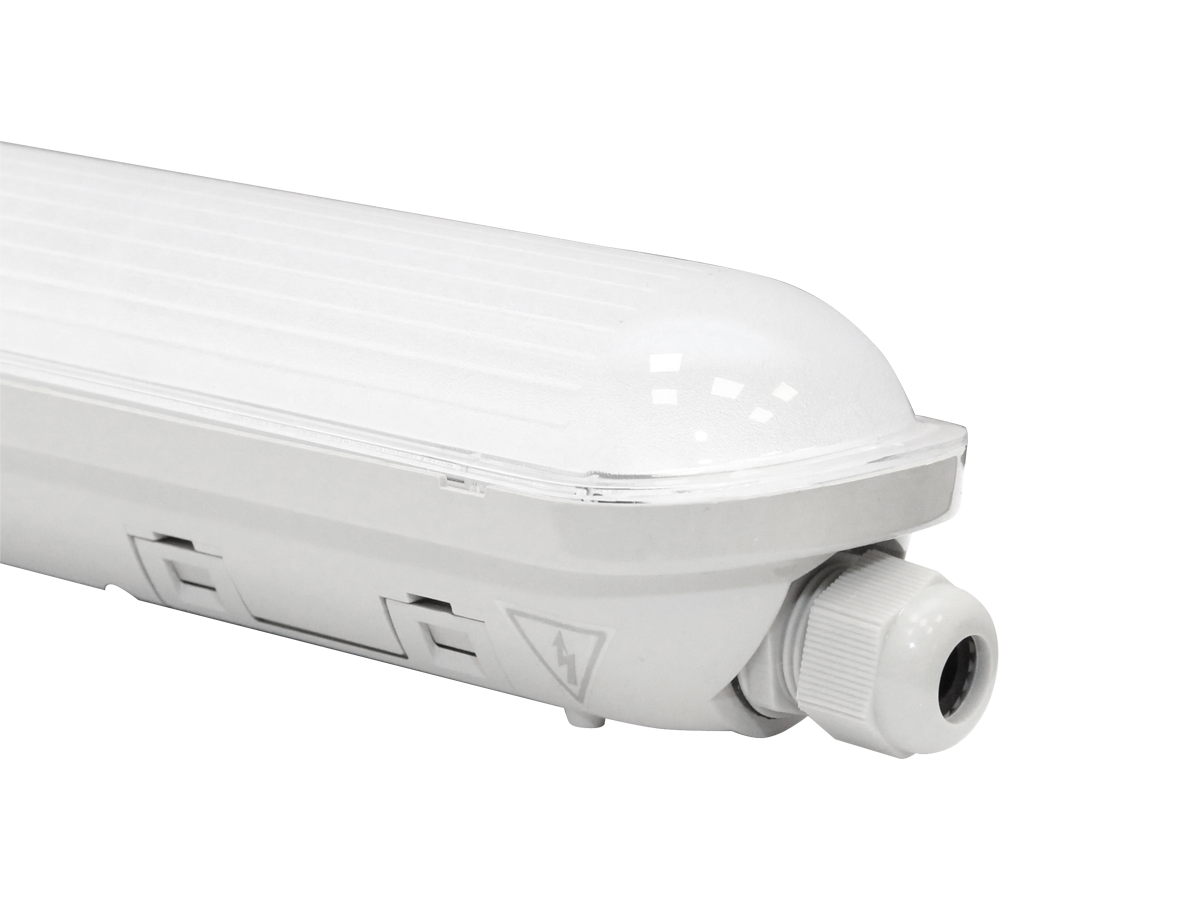

LINKER TRI-PROOF 30W 4000K 4500lm 150lm/W 220-240V IP65 120cm PRIME
Code produit 203709
-
Klasa energetyczna
LINKER series products are hermetic LED luminaires, specially developed for industrial lighting, medical facilities, food processing plants or warehouses. Available in five wattage variants - 21W, 30W, 40W, 55W and 80W - they allow you to adjust the optimal lighting according to your needs. In a series connection system, the maximum number of luminaires to be combined is: for 21-40W models - 22 units, for 55W - 16 units, and for 80W - 10 units.
With a luminous efficacy of 150 lm/W, optimal use of lighting is ensured while consuming significantly less electricity, resulting in lower electricity bills and increased energy efficiency of the building. An additional advantage is the extension of the time between luminaire replacements, thereby reducing the costs associated with lighting maintenance.
Pliki do pobrania
Leaflets
LINKER luminaires have an IP 65 rating, which means they are fully protected from dust and water. At the same time, the products can be operated at temperatures from -25 to 45°C. Resistance class IK08 ensures that the luminaires can withstand external impacts with an energy of up to 5J, and the construction of the diffuser from strong polycarbonate further protects them from damage.
LINKER are products with a color rendering index of Ra ≥ 80, which provides natural ambient colors, which improves visual comfort and creates a pleasant atmosphere. In addition, the luminaires have a high power factor (PF> 0.95) and can go through 50000 on/off cycles. The lifetime of the luminaires is estimated at more than 100000 hours, and high-quality components provide a 5-year guarantee of trouble-free operation. LINKER 40W luminaire is available in an elegant black housing. It's more than a color - it's a nod to aesthetics without compromising on performance. The perfect harmony between design and reliability.
LINKER hermetic luminaires are dedicated to applications in demanding industrial environments, such as medical facilities and warehouses. They are characterized not only by high functionality, but also by aesthetics, making them an excellent choice for a variety of customer needs.
With TUV certification and PZH approval, these luminaires guarantee not only longevity, but also reliability in operation. The possibility of combining luminaires makes it possible to create uniform lines of light, which are distinguished by even and effective illumination, which is important both for the comfort of users and efficiency of work.
Parametry techniczne
| Parametr | Wartość |
|---|---|
| Energy efficiency class 2019/2015 | D |
| Colour of the light | White |
| Colour consistency in McAdam ellipses | ≤6 |
| Luminous efficacy | 150 |
| Luminous flux | 4500 |
| IP protection rating | IP65 |
| Warranty (years) | 5 |
| Contain icon | 0.9 |
| Survival factor | 0.9 |
| Stroboscopic effect metric SVM | 0.4 |
| Current | 0,137 |
| Frequency of the supply voltage | 50/60Hz |
| Colour rendering index Ra | 80 |
| The lumen maintenance factor | 96 |
| Beam angle | 120 |
| Material (cover) | polycarbonate |
| Material (housing) | Polycarbonate |
| LED type | SMD2835 |
| Lifespan | 100 000 h |
| Number of on/off cycles | 50000 |
| Colour consistency in McAdam ellipses | ≤6 |
| Ambient temperature suitable for operation | -25÷45 |
| For indoor and outdoor use | YES |
| IEC protection class | II |
| IK protection rating | 08 |
| Full box quantity | 4 |
| Lamp's warm-up time to 60% | 1 s |
| Length | 1180 |
| Width | 72 |
| Height | 61 |
| Product weight with packaging | 1272 |
| Flicker metric PstLM | 1 |
| Energy class | A+ |
| GPC classification | 10005639 - Lighting - permanently mounted |
| GS1 unit | szt |
| Width | 1180 mm |
| Height | 61 mm |
| Length | 72 mm |
| Weight | 1,43 kg |
| Number of pieces/tape in meters pack zb | 15 |
| Width | 1538 mm |
| Height of collective packaging | 288 mm |
| Length | 246 mm |
| Weight | 17,51 |
| Volume | 0,108 m3 |
| Number of pieces/tapes in meters euro pallet | 180 |
| Quantity collective euro pallet | 180 |
| Weight of a euro pallet | 1260,72 kg |
| Pallet height | 1728 mm |
| Quantity in 1 layer | 180 |
| Number of layers | 1 |
