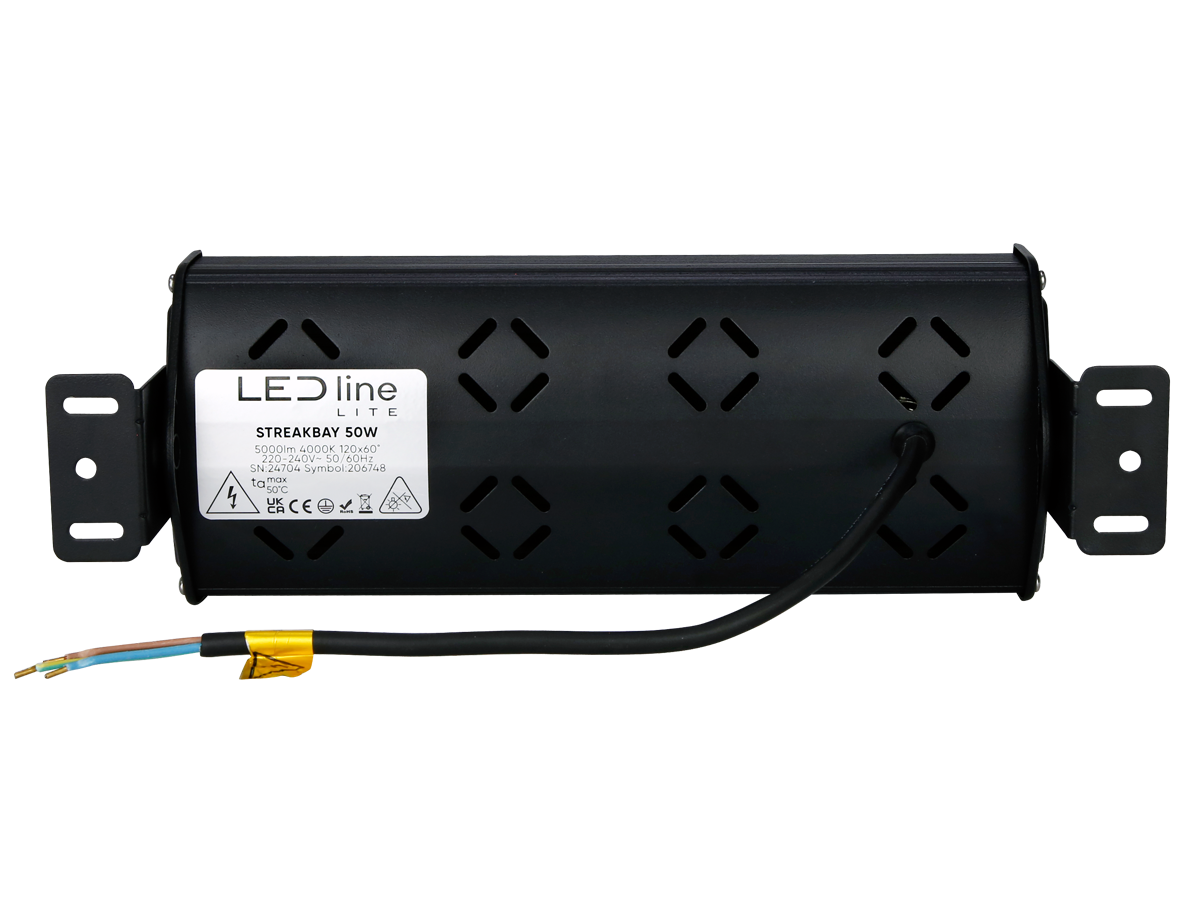

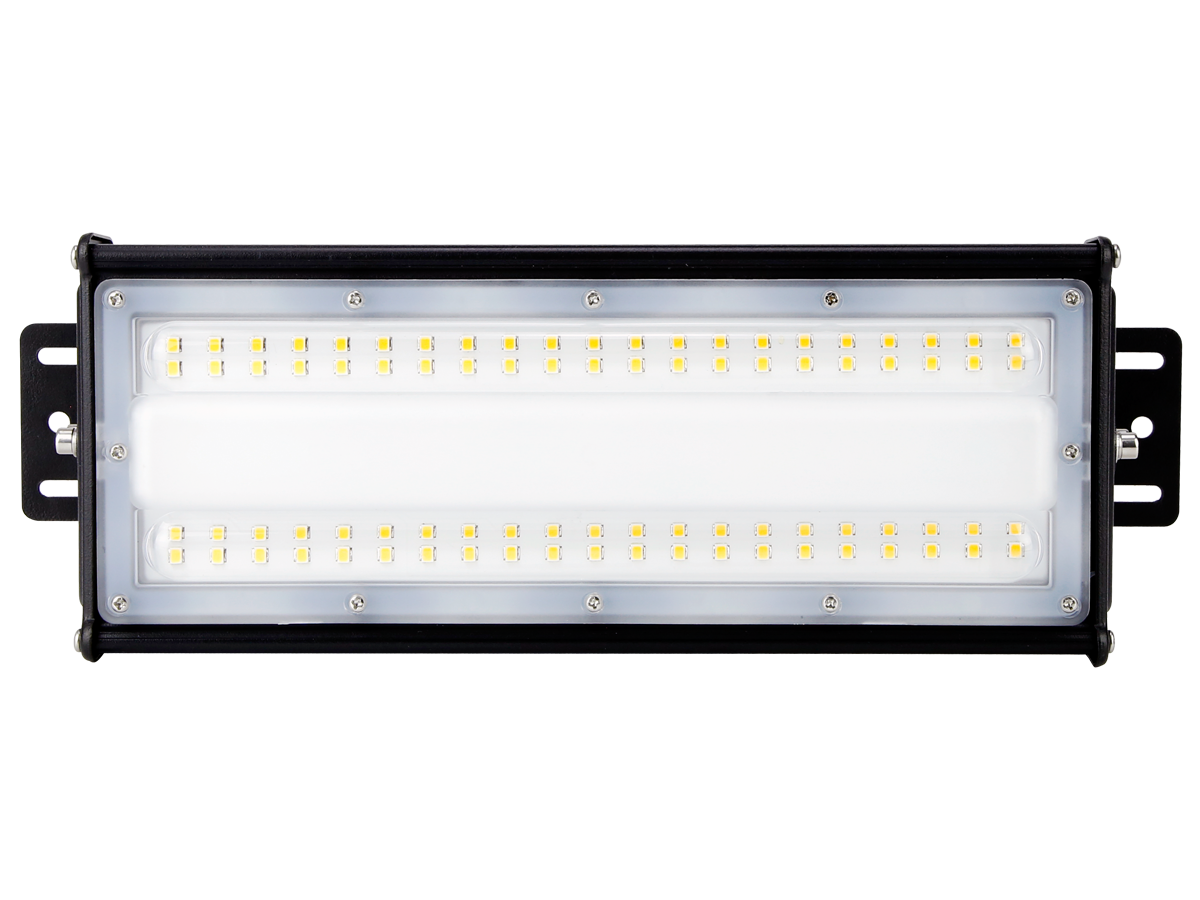

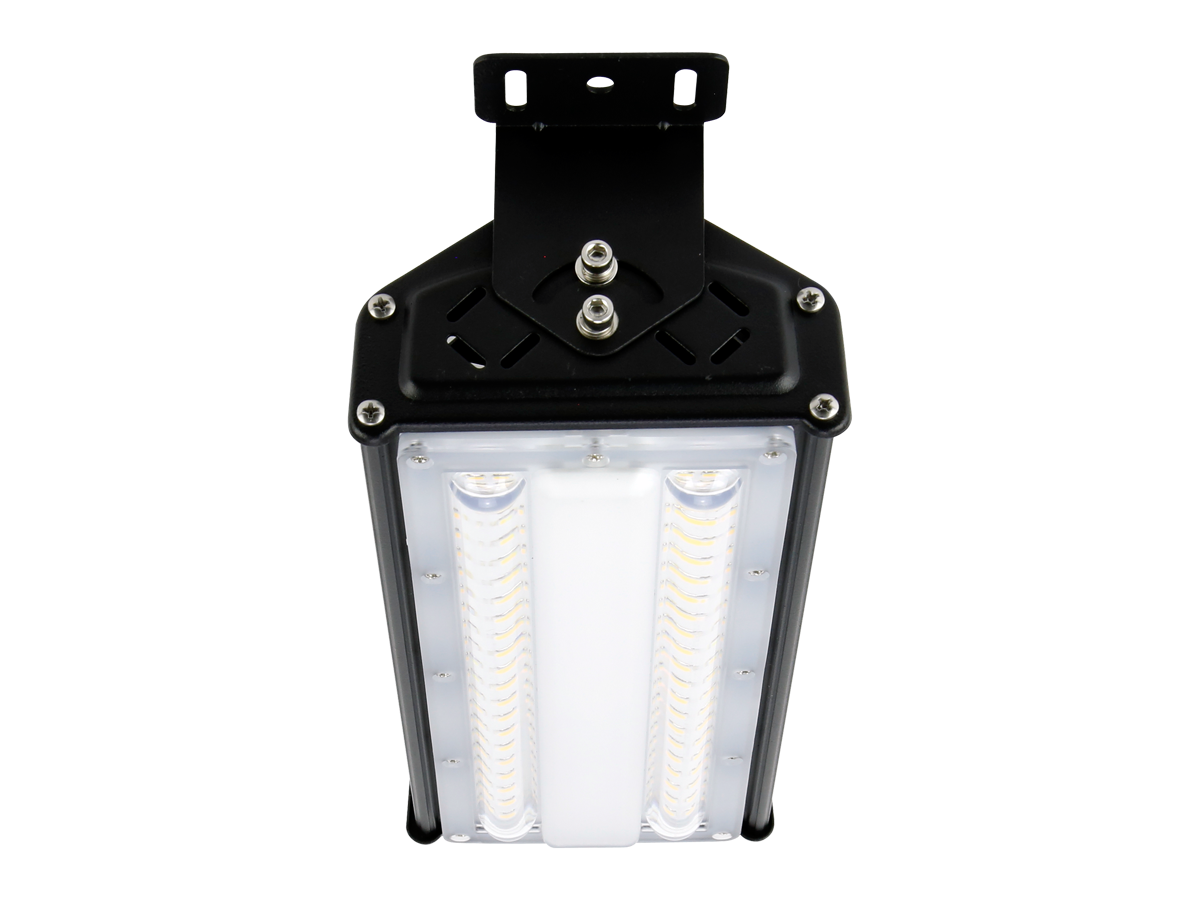

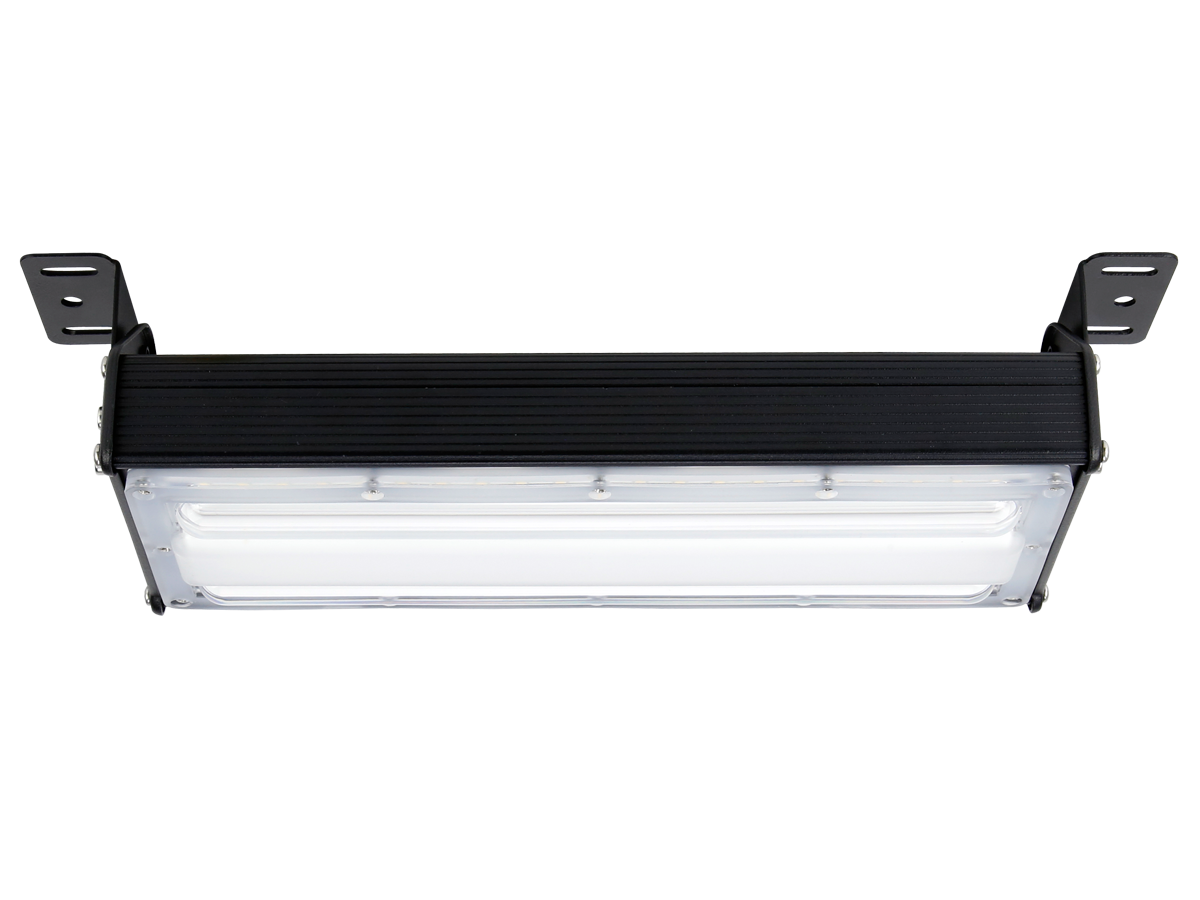

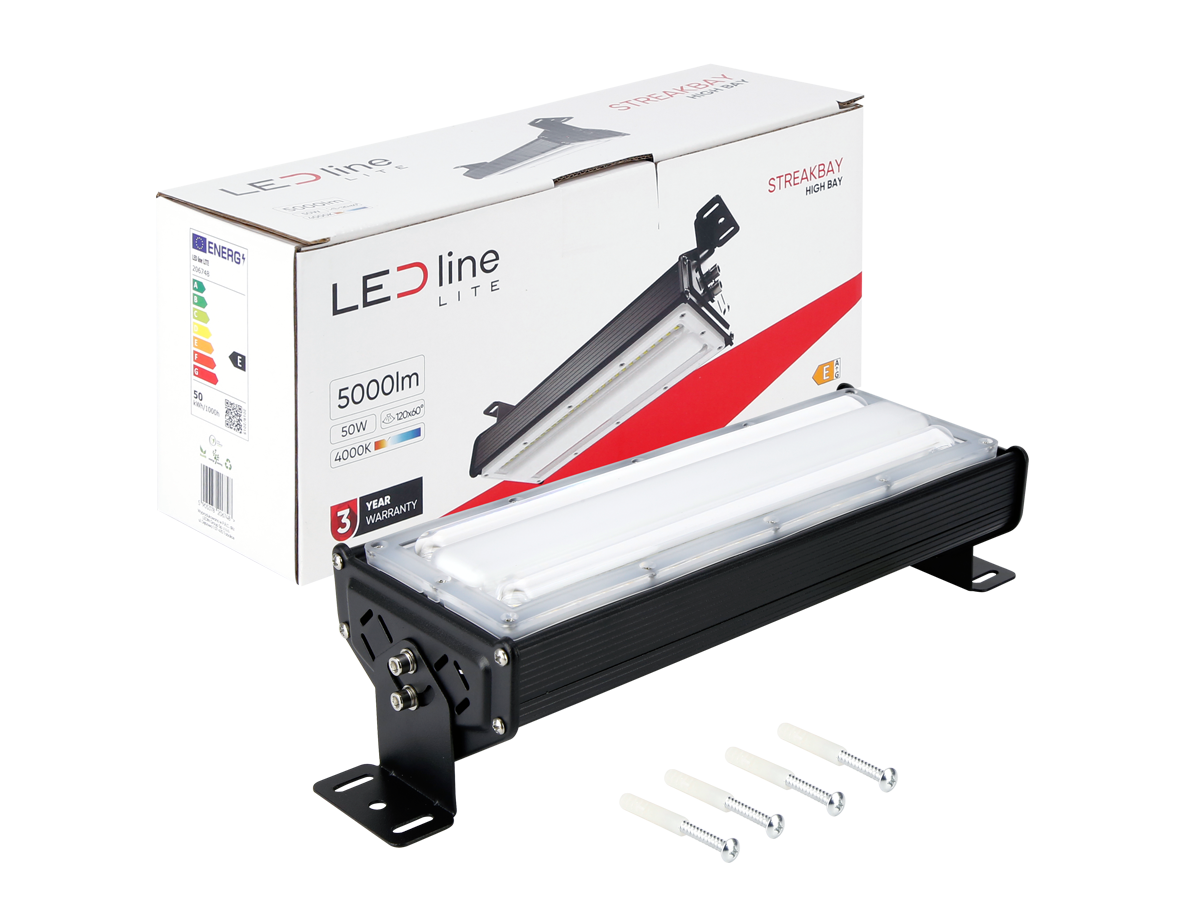

LED line LITE HighBay luminaire STREAKBAY 50W 4000K 10000lm
Product code 206748
The STREAKBAY High Bay LED is an efficient industrial fixture with power options from 50W to 200W and a 4000K color temperature. With a durable aluminum housing and IP65 protection, along with a 120x60° asymmetric lens, it provides even illumination over large areas while minimizing light dispersion. Ideal for harsh conditions, STREAKBAY enhances work comfort and reduces eye strain with its energy efficiency.

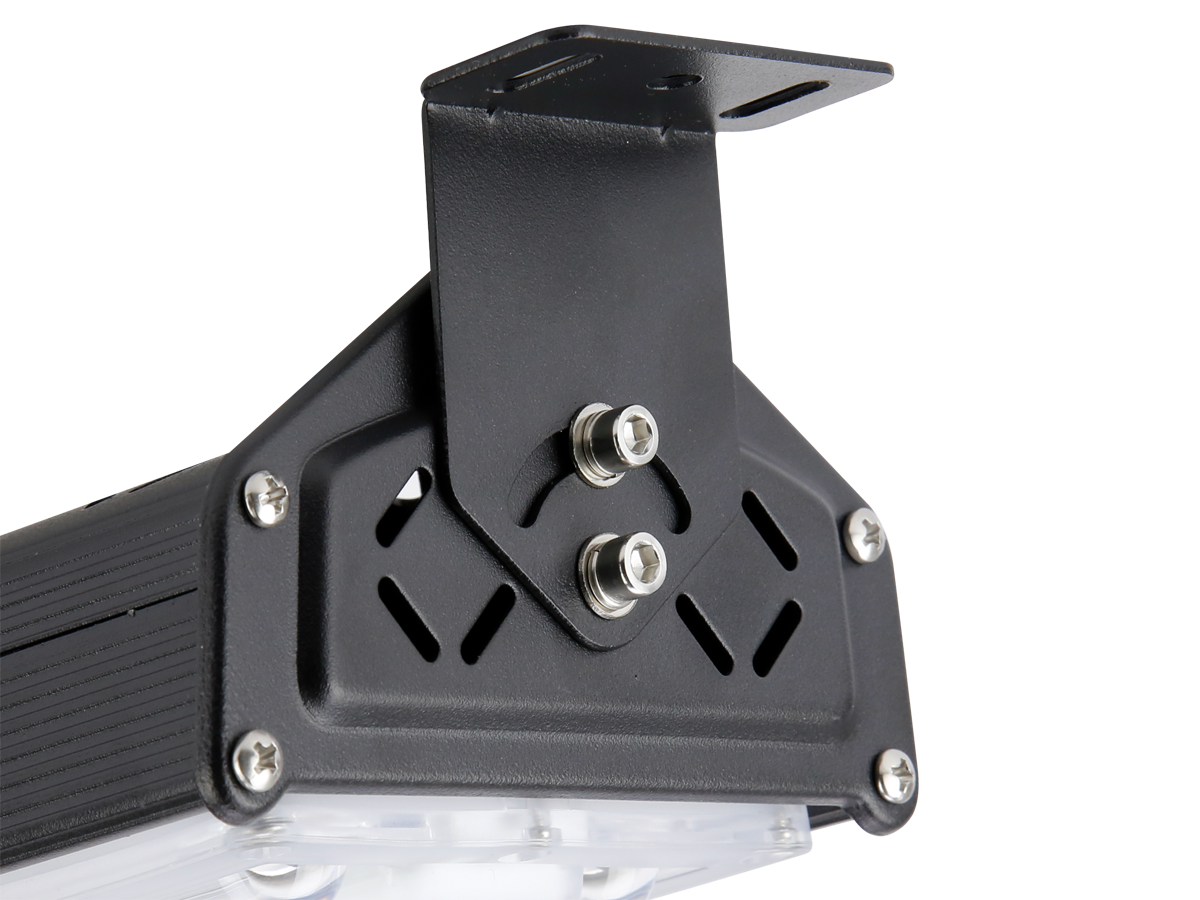

The STREAKBAY High Bay LED is an advanced lighting fixture ideal for industrial applications. With a robust die-cast aluminum construction and an IP65 protection rating, STREAKBAY is highly suited for harsh environments, ensuring reliable performance even in extreme temperatures.
This fixture offers a wide range of models with power options of 50W, 100W, 150W, and 200W, and a color temperature of 4000K, allowing for perfect adaptation to the specific requirements of any space. Equipped with a 120x60° asymmetric lens, it minimizes light dispersion and allows for installation at greater heights, ensuring even illumination of the work surface.
With a high efficiency of 100 lm/W and a color rendering index of RA>80, STREAKBAY provides intense, natural light that improves working comfort and reduces eye strain.
Technical parameters
| Parameter | Value |
|---|---|
| Correlated colour temperature | 4000K |
| Power | 50W |
| Luminous efficacy | 100lm/W |
| Luminous flux | 5000lm |
| Energy efficiency class 2019/2015 | E |
| Colour consistency in McAdam ellipses | ≤6 |
| IP protection rating | 65 |
| Warranty (years) | 5 |
| Diameter | ---mm |
| Contain icon | NonRepl1+NonRepl2 |
| Dimmable function | No |
| Survival factor | 0.9 |
| Stroboscopic effect metric SVM | 0.4 |
| Lifetime L70B50 | 36000 |
| Wire length | ---mm |
| Single wire thickness | ---mm2 |
| Weight | 860g |
| Output current | ---A |
| Maximum load rating | ---W |
| Microwave frequency | ---GHz |
| Sensor's broadcast signal | ---mW |
| Current | 0,229 |
| Supply voltage range and voltage type | 220-240V AC |
| Frequency of the supply voltage | 50/60Hz |
| Colour rendering index Ra | 80 |
| The lumen maintenance factor | 96 |
| Beam angle | 120x60° |
| Material (cover) | polycarbonate |
| Material (housing) | DIE-CAST alu |

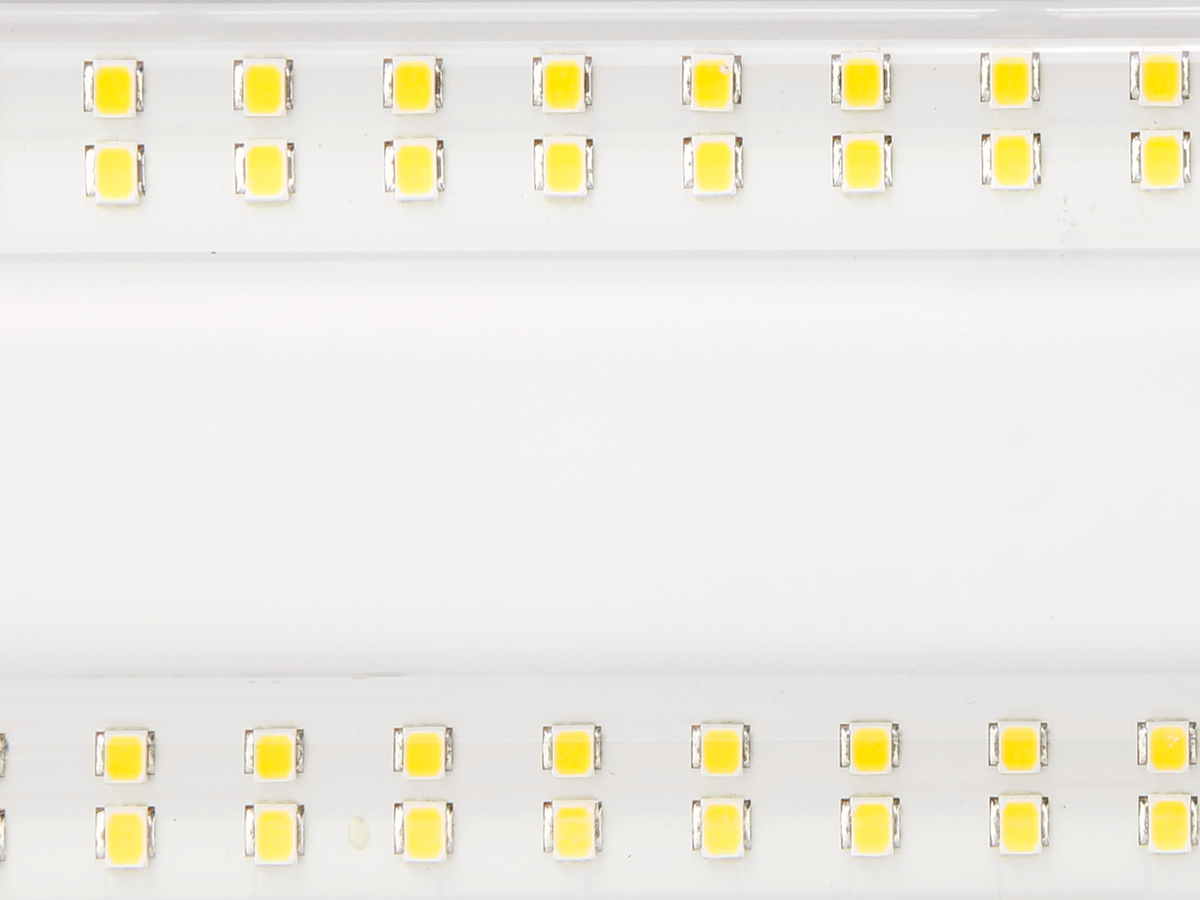

| LED type | SMD LED |
| LED quantity | 54 |
| Power Factor | 0,95 |
| Colour consistency in McAdam ellipses | ≤6 |
| Ambient temperature suitable for operation | `-40 ÷ 40°C |
| IEC protection class | I |
| IK protection rating | 08 |
| Full box quantity | ---pc |
| Length | 285mm |
| Width | 118mm |
| Height | 78mm |
| Thickness | ---mm |
| Product weight with packaging (g) | 944g |
| EPREL ID | 2013999 |
| Flicker metric PstLM | 1 |
| Displacement factor Df | 0.95 |
| Form of the product (EPREL) | Glass Out |
| Angle for useful luminous flux (EPREL) | Sphere 360 degrees |
| Is the product equipped with an integrated light source? (EPREL) | Yes |
| Non-directional or directional light source (EPREL) | NDLS |
| Mains or non- mains light source (EPREL) | MLS |
| Chromaticity coordinates x i y (EPREL) | 0.38|0.377 |
| Connected light source (EPREL) | No |
| Colour-tuneable light source (EPREL) | No |
| Peak luminous intensity (EPREL) | ---cd |
| Total luminous flux (EPREL) | 5750 |
| On-mode power Pon (EPREL) | 50 |
| Useful luminous flux Φuse (EPREL) | 5750 |
| Beam angle in degrees (EPREL) | 120 |
| GPC classification | 10005633 - Bulb sockets |
| Status | Discontinued (no longer for sale) |
| Net content of the product | 1 |
| GS1 unit | pcs. |
