LED line LITE TRI-PROOF 70W 4000K 1550mm
Product code 477620
-
Energy code
The TRI-PROOF 70W 4000K 1550mm luminaire by LED line LITE is a cutting-edge lighting solution designed for superior performance and durability. Emitting a neutral white light with a color temperature of 4000 K and an impressive luminous flux of 8400 lumens, this fixture is ideal for diverse applications, including industrial and commercial spaces. With a sleek design and robust construction, it guarantees reliable illumination even in challenging environments. Engineered to withstand harsh conditions, the luminaire boasts an IP65 rating, making it resistant to dust and water jets.
Its housing, crafted from durable polycarbonate material, ensures long-lasting protection against mechanical damage while maintaining lightweight efficiency. The high energy efficiency of the fixture is reflected in its luminous efficacy of 120 lm/W, delivering bright lighting at reduced energy consumption. Additionally, a color rendering index (CRI) of ≥80 ensures accurate color representation for enhanced visual clarity. Equipped with advanced SMD 2835 LEDs (192 pieces), the TRI-PROOF offers exceptional longevity with a lifespan of up to 35,000 hours and flicker-free operation for optimal user comfort.
Although it lacks dimming capabilities or dusk sensors, its surface-mounted design allows for straightforward installation in even hard-to-reach areas. Featuring IK08 impact resistance and meeting class II electrical safety standards, this luminaire prioritizes both reliability and security. The wide beam angle of 120° provides uniform light distribution without stroboscopic effects (SVM ≤0.9), making it an excellent choice for any demanding lighting setup.
Technical parameters
Parametr | Wartość |
---|---|
Colour of the light | White |
Colour consistency in McAdam ellipses | ≤6 |
Energy efficiency class 2019/2015 | E |
Luminous flux | 8400lm |
Luminous efficacy | 120lm/W |
IP protection rating | IP65 |
Warranty (years) | 3 |
Survival factor | 0.9 |
Stroboscopic effect metric SVM | 0.9 |
Mounting type | surface |
Flicker Free | YES |
Current | 0,338 |
Frequency of the supply voltage | 50/60Hz |
Colour rendering index Ra | 80 |
CRI colour rendering index | 80 |
Colour | White |
The lumen maintenance factor | 96% |
Beam angle | 120° |
Material (cover) | polycarbonate |
Material (housing) | Polycarbonate |
LED type | 2835 |
LED quantity | 192 |
Lifespan | 35000 |
Power Factor | 0,9 |
Number of on/off cycles | 20000 |
Colour consistency in McAdam ellipses | ≤6 |
Ambient temperature suitable for operation | -20÷40°C |
For indoor and outdoor use | YES |
IEC protection class | II |
IK protection rating | 08 |
Full box quantity | 10pc |
Lamp's warm-up time to 60% | 1 |

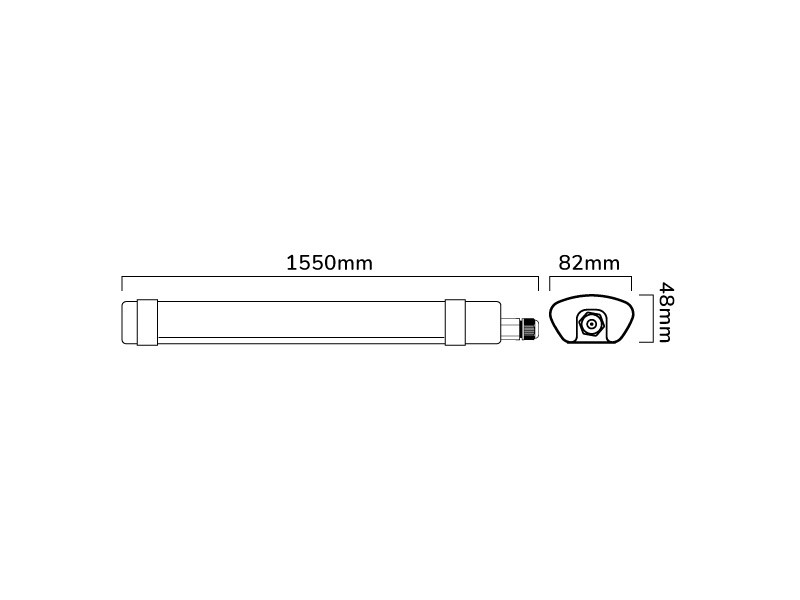

Length | 1550mm |
Width | 82mm |
Height | 48mm |
Product weight with packaging | 705g |
Flicker metric PstLM | 1 |
Energy class | A++ |
Displacement factor Df | 0.9 |
GPC classification | 10005639 - Lighting - permanently mounted |
GS1 unit | szt |
Width | 1550 mm |
Height | 48 mm |
Length | 82 mm |
Weight | 1,1 kg |
Number of pieces/tape in meters pack zb | 10 szt. |
Width | 1560 mm |
Height of collective packaging | 190 mm |
Length | 270 mm |
Weight | 11,35 kg |
Volume | 0,080 m3 |
Number of pieces/tapes in meters euro pallet | 170 |
Quantity collective euro pallet | 1600 szt. |
Weight of a euro pallet | 1816 kg |
Pallet height | 1900 mm |
Quantity in 1 layer | 160 szt. |
Number of layers | 10 |
