LED line® RANGER C linear TRI-PROOF lamp 40W 4000K 140lm/W IP66
Product code 471109
-
Energy code

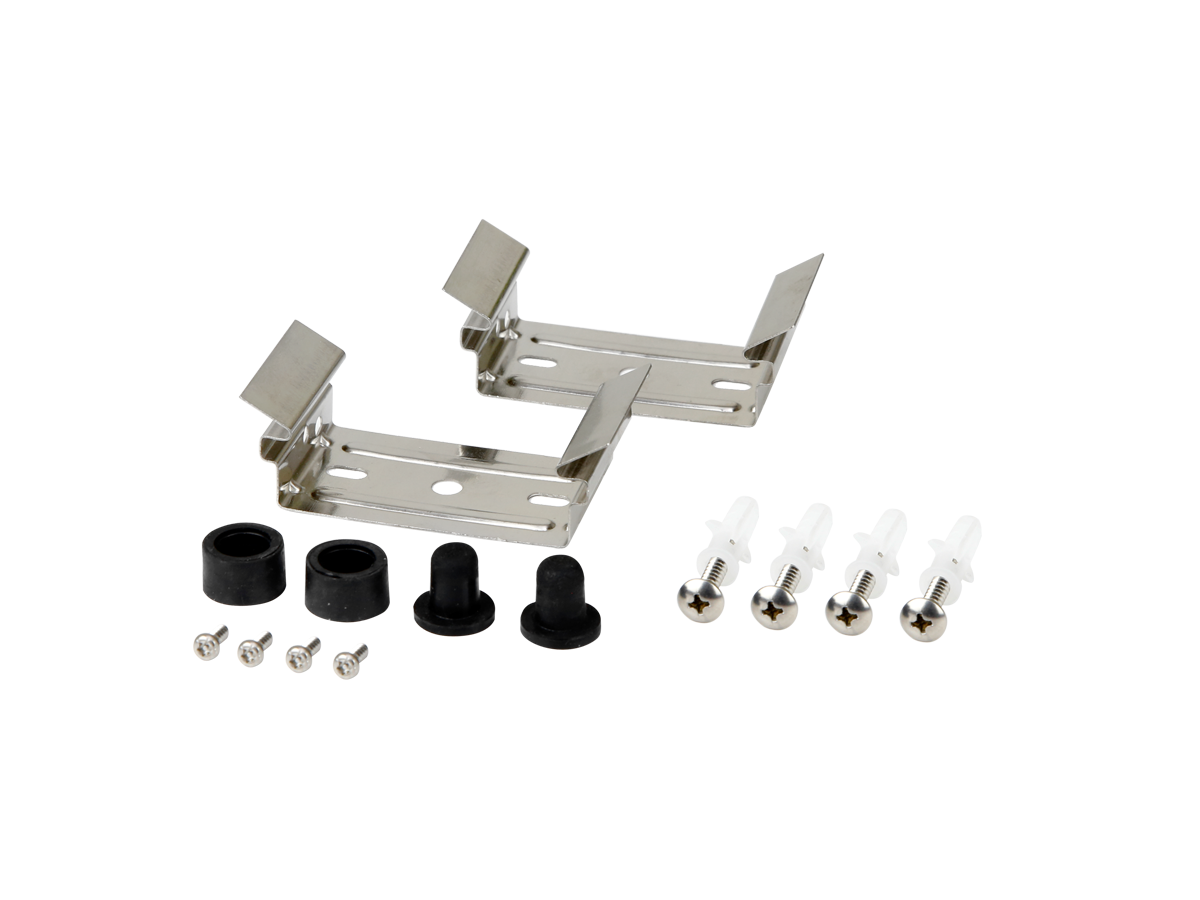

The product uses materials and structural solutions that increase its impact resistance. The product is featured by high resistance to mechanical damage and vandalism. This product is featured by a high degree of IP protection, which makes it suitable for a broader range of lighting applications and offers high safety of use. Our TRI-PROOF luminaires are suitable for both, surface and suspension installation. This is one of the most significant features of our LED line® TRI-PROOF luminaires.

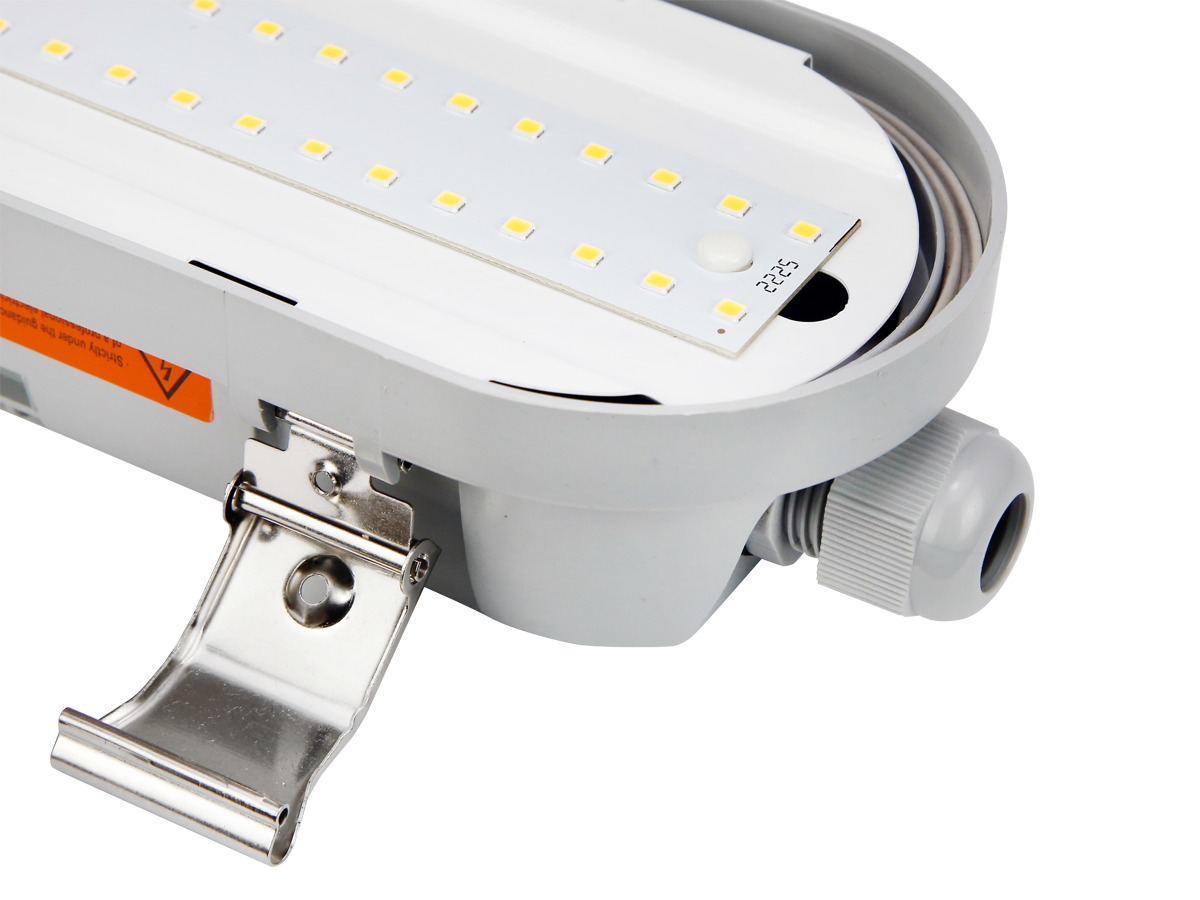

The IEC protection class is: I and its light’s colour temperature is 4000 K This item is equipped with diodes of the following type: SMD2835. This item achieves luminous efficacy of 140 lm/W. This item achieves a luminous flux of 5600 lm. The LED's beam angle is 120 °.
The applied power supply system guarantees a wide range of input voltage 220-240V AC, which enables reliable operation event in case of possible voltage fluctuations. This solution reduces, to significant extent, the risk of device failure.
The ingress protection rating for this item is IP 66, which ensures strong protection against ingress of water and solid objects. This item is resistant to 5J energy impact - it has an impact protection rating of IK08. The item's high resistance to mechanical damage is guaranteed by the use of dedicated material which the diffuser/cover is made of - polycarbonate
The Ra colour rendering index is 80. The lifespan of each single diode which this item is equipped with is over 100000. The power factor is PF> 0,95. The number of on/off cycles is 50000. The Energy class is A+.
The IEC protection class is: I.
Ambient temperature suitable for operation `-20 ÷ 45 °C For indoor and outdoor use.
Technical parameters
| Parameter | Value |
|---|---|
| Colour of the light | White |
| Energy efficiency class 2019/2015 | D |
| Colour consistency in McAdam ellipses | ≤6 |
| Correlated colour temperature | 4000K |
| Luminous flux | 5600lm |
| Luminous efficacy | 140lm/W |
| Power | 40W |
| IP protection rating | 66 |
| Warranty (years) | 5 |
| Survival factor | 0.9 |
| Stroboscopic effect metric SVM | 1.1 |
| Lifetime L70B50 | 100000 |
| Outer box quantity | 10pcs. |
| Driver Brand | Tridonic |
| UGR rating | UGR<25 |
| Current | 0,2 |
| Supply voltage range and voltage type | 220-240 VAC |
| Frequency of the supply voltage | 50/60Hz |
| Colour rendering index Ra | 80 |
| Colour | Gray |
| The lumen maintenance factor | 96% |
| Beam angle | 120° |
| Material (cover) | polycarbonate |
| Material (housing) | ABS |
| LED type | SMD2835 |
| LED quantity | 456 |
| Lifespan | 100000 |
| Power Factor | 0,95 |
| Number of on/off cycles | 50000 |
| Colour consistency in McAdam ellipses | ≤6 |
| Ambient temperature suitable for operation | -20÷45°C |
| For indoor and outdoor use | YES |
| IEC protection class | I |
| IK protection rating | 08 |
| Lamp's warm-up time to 60% | 1 |
| Product weight with packaging (g) | 1783g |
| Flicker metric PstLM | 1 |
| Energy class | A+ |
| Displacement factor Df | 0.95 |
| GPC classification | 10005639 - Lighting - permanently mounted |
| Status | In Stock |
| Net content of the product | 1 |
| GS1 unit | pcs. |
| Width | 100mm |
| Height | 82mm |
| Length | 1220mm |
| Weight | 1,72kg |
| Width | 430mm |
| Length | 1240mm |
| Weight | 18,5kg |
| Volume | 0,1173m3 |
| Weight of a euro pallet | 129,5kg |
