LED line® Strip 600 SMD 24V 6500K 9,6W IP65
Product code 477088
Technical parameters
| Parameter | Value |
|---|---|
| Colour of the light | White |
| Colour consistency in McAdam ellipses | ≤6 |
| Energy efficiency class 2019/2015 | F |
| Correlated colour temperature | 6500K |
| Luminous efficacy | 100lm/W |
| IP protection rating | 65 |
| Warranty (years) | 3 |
| Led size | 2835 |
| Dimmable function | PWM |
| Survival factor | 0.9 |
| PCB layers | 2 layers |
| Coating | YES |
| Coating type | HQ PU |
| Coating UV resistance | YES |
| Wire colours | red/black |
| Wiring types | 2-wire |
| Wattage (1m) | 9,6W |
| Luminous flux (1m) | 960 |
| Current (1m) | 0,4 |
| Supply voltage range and voltage type | 24 VDC |
| Colour rendering index Ra | 80 |
| Metres per roll | 5 |
| The lumen maintenance factor | 96% |
| Beam angle | 120° |
| LED type | SMD 2835 |
| LED quantity | 600 |
| Compatible dimmer type | PWM |
| Laminate (colour) | White |
| Laminate (thickness) | 2 |
| LED quantity (1m) | 120 |

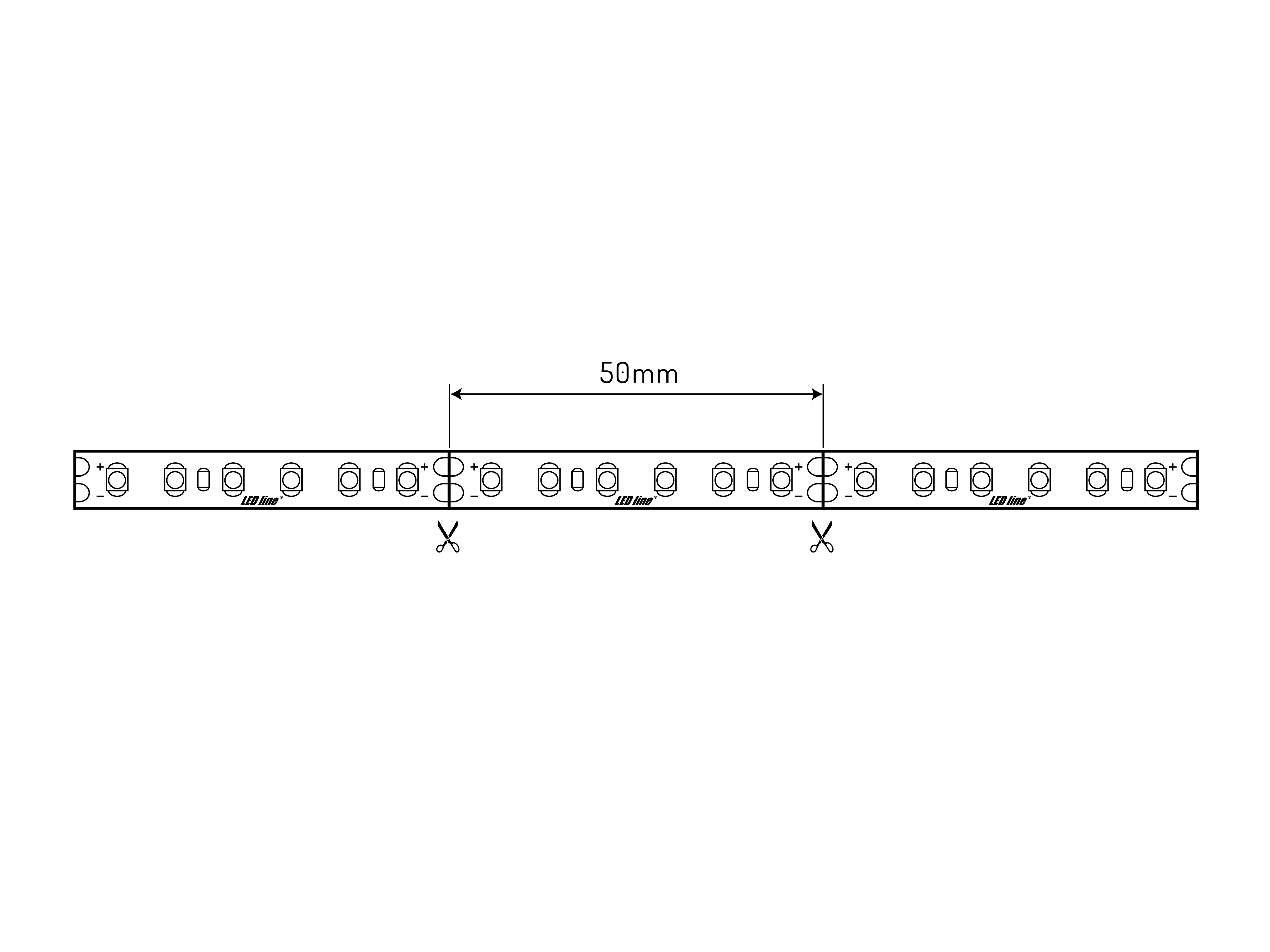

| Cutting section | 5 |
| Type of adhesive tape | 3M 300 LSE |
| Colour consistency in McAdam ellipses | ≤6 |
| Ambient temperature suitable for operation | -20÷45°C |
| For indoor and outdoor use | YES |
| IEC protection class | III |
| Length | 5000mm |

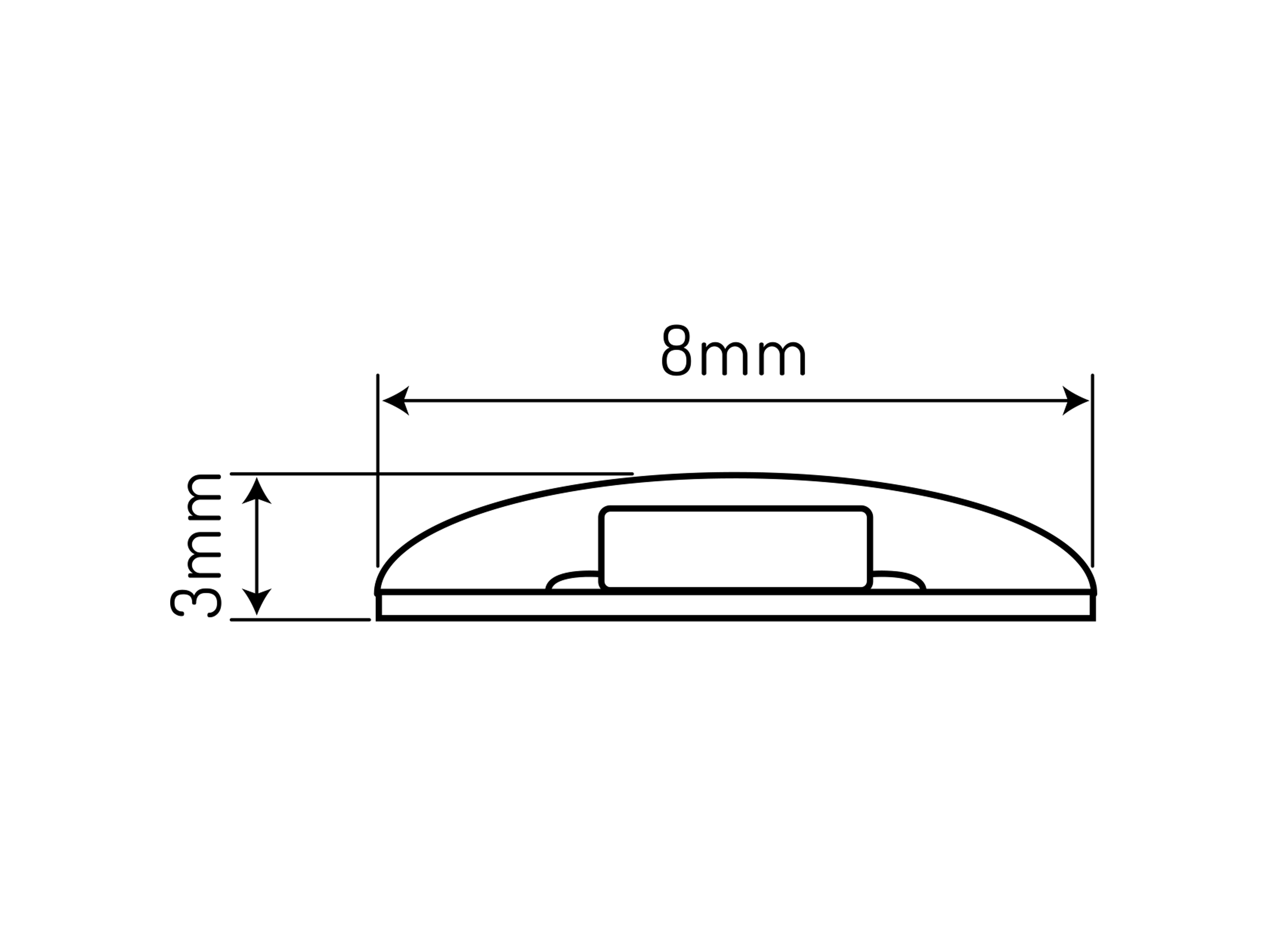

| Height | 3mm |
| GPC classification | 10003056 - Accent lighting |
| GS1 unit | meter |
| Number of pieces/tape in meters pack zb | 100 |
| Quantity collective euro pallet | 60 |
| Weight of a euro pallet | 300 |
| Pallet height | 1800 |
| Quantity in 1 layer | 6 |
| Number of layers | 10 |
