LED line® strip 600 SMD 24V 6500K 9,6W
Product code 241352
-
Energy code
Technical parameters
| Parameter | Value |
|---|---|
| Colour of the light | White |
| Colour consistency in McAdam ellipses | ≤3 |
| Energy efficiency class 2019/2015 | G |
| Luminous efficacy | 77lm/W |
| Correlated colour temperature | 6500K |
| IP protection rating | 20 |
| Warranty (years) | 5 |
| Dimmable function | PWM |
| Survival factor | 0.9 |
| Wattage (1m) | 9,6W |
| Luminous flux (1m) | 680lm |
| Current (1m) | 0,4 |
| Supply voltage range and voltage type | 24 VDC |
| Colour rendering index Ra | 90 |
| CRI colour rendering index | 90 |
| Metres per roll | 5 |
| The lumen maintenance factor | 96% |
| Beam angle | 120° |
| LED type | SMD2216 |
| Not dimmable | TAK |
| Compatible dimmer type | PWM |
| Laminate (colour) | White |
| Laminate (thickness) | 2 |
| LED quantity (1m) | 120 |
| Cutting section | 5 |
| Type of adhesive tape | 3M 300 LSE |
| Lifespan | 100000 |
| Number of on/off cycles | 50000 |
| Colour consistency in McAdam ellipses | ≤3 |
| Ambient temperature suitable for operation | -20÷45°C |
| For indoor use | Inside |
| IEC protection class | III |
| Full box quantity | 75pc |
| Lamp's warm-up time to 60% | 1 |

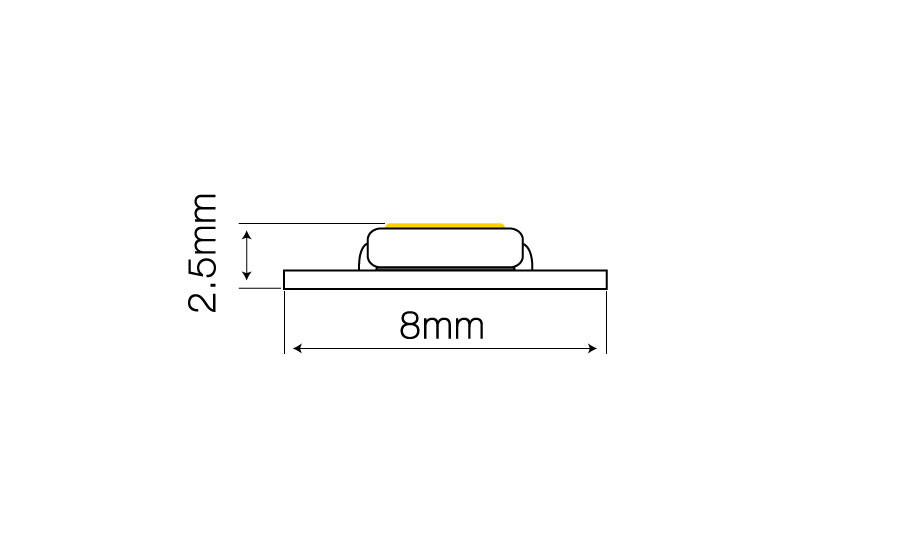

| Width | 8mm |
| Height | 2,5mm |
| Product weight with packaging | 112g |
| Master carton weight (kg) | 8,4 |
| Energy class | A |
| GPC classification | 10003056 - Accent lighting |
| GS1 unit | meter |
| Number of pieces/tape in meters pack zb | 100 |
| Quantity collective euro pallet | 24 |
| Pallet height | 984 |
| Quantity in 1 layer | 8 |
| Number of layers | 3 |
